	UV EXPOSURE SYSTEM
	EXPO 850
	EXPO 1500

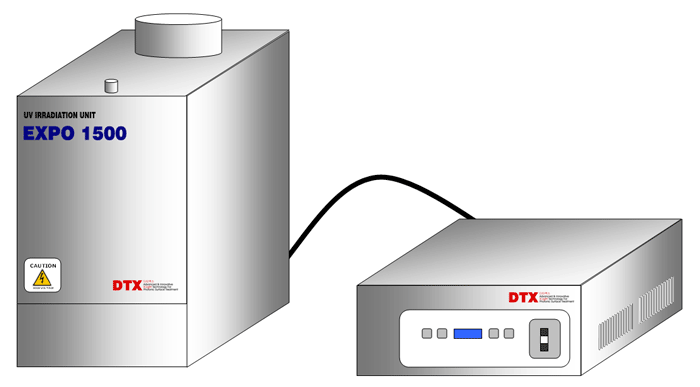

UV EXPOSURE SYSTEM (EXPO 1500)

FEATURES & ADVANTAGES

		Microprocessor Control			Run time Integration of UV lamp
		Compact Appearance			UV Intensity adjustment by stepping motor (63 Step)
		System design for User’s convenience			Remote interface for peripheral equipments
		High UV Intensity			Remote / Manual Mode
		Excellent UV Uniformity			Various error signal output for safety operation and system monitoring
		Easy lamp exchange			External Interface for PLC or Industrial PC

SYSTEM SPECIFICATIONS

Description			Specification
Model			EXPO 1500 P		EXPO 1500 R
UV Irradiation Direction			Perpendicular type		Reflection type
Controller & Lamp Housing			Separate body		Separate body
Lamp			High pressure mercury UV lamp (LTZ 85000 FUA)
Lamp Lifetime			1500 Hr
UV Intensity			10,000 mW/Cm2 at 365nm
UV Intensity with Rod lens unit	Hexag- onal 135 mm	365nm	220mW/Cm2 @ 260mm		175mW/Cm2 @ 260mm
		405nm	380mW/Cm2 @ 260mm		300mW/Cm2 @ 260mm
	Quadr- angular 70 mm	365nm	500mW/Cm2 @ 90mm		400mW/Cm2 @ 90mm
		405nm	780mW/Cm2 @ 90mm		620mW/Cm2 @ 90mm
	Quadr- angular 50 mm	365nm	650mW/Cm2 @ 90mm		520mW/Cm2 @ 90mm
		405nm	1170mW/Cm2 @ 90mm		930mW/Cm2 @ 90mm
Intensity adjustment			63 Step
System Control			Microprocessor control
Shutter control			Auto mode/ Manual mode (Stepping motor control) Timer : 0.1 Sec ~ 999.9 Sec ( 0.1 Sec interval)
Cooling			Forced air cooling
External Interface			Remote control and monitoring by PLC or Automation system (5 ~ 24V contact by photo-coupler)
			Input signal		Lamp On/Off Manual/Remote selection Shutter Open/Close Intensity control Timer reset
			Output signal		Lamp On/Off status Lamp stabilization status lamp lifetime status Shutter Open/Close status Ignition fail error Door open error Temperature error Shutter error Shutter orientation fail error Iris orientation fail errorAnd, various errors
Operation Modes			Manual Mode		System control by manual
			Remote Mode		System control by peripheral equipments such as PLC, Industrial PC, etc.
Warming up time			5 minute
Power Supply			Stabilized power supply by microprocessor control. Support of constant light output
Safety			Door interlock Thermal fuse Air filter
Dimension			250(W) x 350(D) x 550(H)
Operation condition			Temperature : 5 ~ 35 C, Humidity : less than 70%
Power Input			AC110 / 220V ±10%, 50/60HZ
Weight			Approx. 25 kg	Approx. 30 kg

ROD LENS UNIT & ACCESSORIES

Rod Lens Unit

High Pressure Mercury Lamp

Light Guide

UV INTENSITY WITH ROD LENS UNIT

Rod lens type	Wavelength	EXPO 1500 P	Height	EXPO 1500 R	Height
Hexagonal 135 mm	365 nm	220 mW/Cm2	260 mm	175 mW/Cm2	260 mm
Hexagonal 135 mm	405 nm	380 mW/Cm2	260 mm	300 mW/Cm2	260 mm
Quadrangular 70 mm	365 nm	500 mW/Cm2	90 mm	400 mW/Cm2	90 mm
Quadrangular 70 mm	405 nm	780 mW/Cm2	90 mm	620 mW/Cm2	90 mm
Quadrangular 50 mm	365 nm	650 mW/Cm2	90 mm	520 mW/Cm2	90 mm
Quadrangular 50 mm	405 nm	1170 mW/Cm2	90 mm	930 mW/Cm2	90 mm

* Above specification can be changed without notification for our quality improvement.

APPLICATIONS

Semiconductor wafer exposure, FPD edge exposure

UV curing for DVD bonding

Various Spot UV curing and surface treatment fields such as Semiconductor, Communication, Display (LCD, PDP), and etc.

All manufacturing industries using UV curable adhesive, paints, bonds on various part’s bonding, curing, drying process.
