	UV EXPOSURE SYSTEM
	EXPO 850
	EXPO 1500

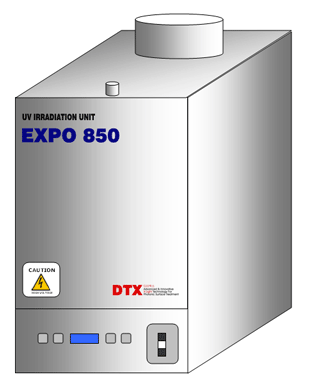

UV EXPOSURE SYSTEM (EXPO 850)

FEATURES & ADVANTAGES

		Microprocessor Control
		Compact Appearance
		System design for User’s convenience
		High UV Intensity
		Excellent UV Uniformity
		Easy lamp exchange
		Run time Integration of UV lamp
		UV Intensity adjustment by stepping motor (63 Step)
		Remote interface for peripheral equipments
		Remote / Manual Mode
		Various error signal output for safety operation and system monitoring
		External Interface for PLC or Industrial PC

SYSTEM SPECIFICATIONS

Description			Specification
Model			EXPO 850 P	EXPO 850 R
UV Irradiation Direction			Perpendicular type	Reflection type
Controller & Lamp Housing			One body	One body
Lamp			High pressure mercury UV lamp (LTZ 85002 MA)
Lamp Lifetime			1500 Hr
UV Intensity			10,000 mW/Cm2 at 365nm
UV Intensity with Rod lens unit	Hexag- onal 135 mm	365nm	160mW/Cm2 @ 380mm	130mW/Cm2 @ 260mm
		405nm	280mW/Cm2 @ 380mm	220mW/Cm2 @ 260mm
	Quadr- angular 70 mm	365nm	380mW/Cm2 @ 90mm	300mW/Cm2 @ 90mm
		405nm	600mW/Cm2 @ 90mm	480mW/Cm2 @ 90mm
	Quadr- angular 50 mm	365nm	500mW/Cm2 @ 90mm	400mW/Cm2 @ 90mm
		405nm	900mW/Cm2 @ 90mm	720mW/Cm2 @ 90mm
Intensity adjustment			63 Step
System Control			Microprocessor control
Shutter control			Auto mode/ Manual mode (Stepping motor control) Timer : 0.1 Sec ~ 999.9 Sec ( 0.1 Sec interval)
Cooling			Forced air cooling
External Interface			Remote control and monitoring by PLC or Automation system (5 ~ 24V contact by photo-coupler)
			Input signal	Lamp On/Off Manual/Remote selection Shutter Open/Close Intensity control Timer reset
			Output signal	Lamp On/Off status Lamp stabilization status lamp lifetime status Shutter Open/Close status Ignition fail error Door open error Temperature error Shutter error Shutter orientation fail error Iris orientation fail errorAnd, various errors
Operation Modes			Manual Mode	System control by manual
			Remote Mode	System control by peripheral equipments such as PLC, Industrial PC, etc.
Warming up time			5 minute
Power Supply			Stabilized power supply by microprocessor control. Support of constant light output
Safety			Door interlock Thermal fuse Air filter
Dimension			250(W) x 350(D) x 550(H)
Operation condition			Temperature : 5 ~ 35 C, Humidity : less than 70%
Power Input			AC110 / 220V ±10%, 50/60HZ
Weight			Approx. 25 kg		Approx. 30 kg

ROD LENS UNIT & ACCESSORIES

Rod Lens Unit

High Pressure Mercury Lamp

Light Guide

UV INTENSITY WITH ROD LENS UNIT

Rod lens type	Wavelength	EXPO 850 P	Height	EXPO 850 R	Height
Hexagona 135 mm	365 nm	160 mW/Cm2	380 mm	130 mW/Cm2	260 mm
Hexagona 135 mm	405 nm	280 mW/Cm2	380 mm	220 mW/Cm2	260 mm
Quadrangular 70 mm	365 nm	380 mW/Cm2	90 mm	300 mW/Cm2	90 mm
Quadrangular 70 mm	405 nm	600 mW/Cm2	90 mm	480 mW/Cm2	90 mm
Quadrangular 50 mm	365 nm	500 mW/Cm2	90 mm	400 mW/Cm2	90 mm
Quadrangular 50 mm	405 nm	900 mW/Cm2	90 mm	720 mW/Cm2	90 mm

* Above specification can be changed without notification for our quality improvement.

APPLICATIONS

Semiconductor wafer exposure, FPD edge exposure

UV curing for DVD bonding

Various Spot UV curing and surface treatment fields such as Semiconductor, Communication, Display (LCD, PDP), and etc.

All manufacturing industries using UV curable adhesive, paints, bonds on various part’s bonding, curing, drying process.
